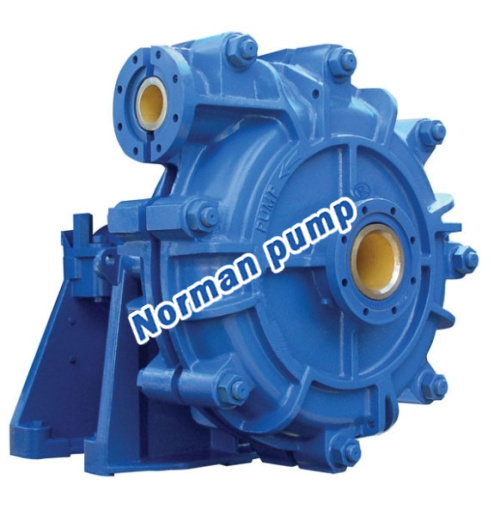

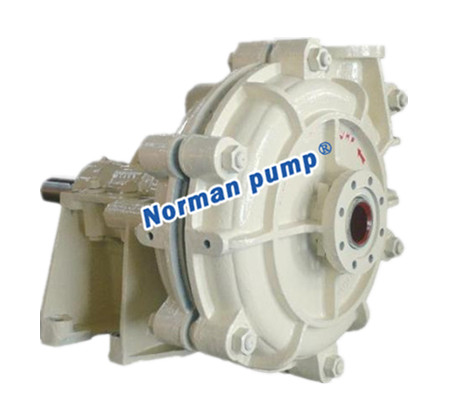

NGM Slurry Pump

NGM Series slurry pumps are cantilevered, horizontal slurry pumps, centrifugal slurry pumps. They are designed for the handling of highly abrasive, high-density slurries. This series pump may also be installed in multistage series.NGM series slurry pumps have become the first selection in metallurgical, mining, coal, power, building material and other industrial departments.

1.General Description
Deliver the abrasive slurry to reach the high head, PH 5-12 metal lined.
2.Introduction
NGM slurry pumps are cantilevered, horizontal, centrifugal slurry pumps. The frame plate liner and impeller for NGM pump are made of wear-resistant metal.NGM slurry pumps are designed for the handling of highly abrasive, high-density slurries. This series pump may also be installed in multistage series.
The discharge branch can be oriented to any of the eight positions to suit installations and applications.The shaft seals may choose gland seal or expeller seal.
3.Model Explanation
NGM-2D
N: our company(Norman)
G: High head
M: Metal lined
2: Discharge size (inch)
D: Frame type with maximum power

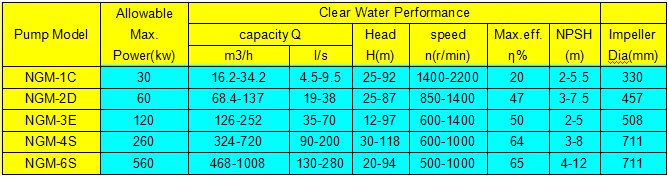

                                                                      NGM Series Slurry Pump Performance Chart

Note: Quantity range recommended:50%Q’≤Q≤100%Q’(Q’Appropriate to capacity at highest efficiency point).
2.NPSH:appropriate to point Q recommended at highest speed.

Application

NGM Series Slurry Pumps are designed for the handling of highly abrasive, high density slurries in the metallurgical, mining, coal, power generation, construction material and other industry. The pumps of this type may also be installed in multistage series.

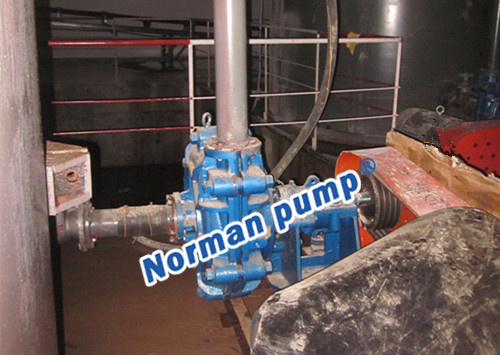

 NGM-2D is used in building material(ceramic solid) industrial in South East Asia.
