1. General description
Deliver the slurry with middle concentration, PH 5-12, metal lined.
2. Introduction
NMM Series pumps are cantilevered, horizontal, centrifugal, slurry pumps. NMM Series pumps are adopted high speed operating and so they have small volumes saving floor area. The discharge position by request may be rotated 8 different angles at internal of 45 degrees for installation and application.
3. Model Explanation
NMM-8E
N: our company(Norman)
M: Middle concentration
M: Metal lined
8: Discharge size (inch)
E: Frame type with maximum power

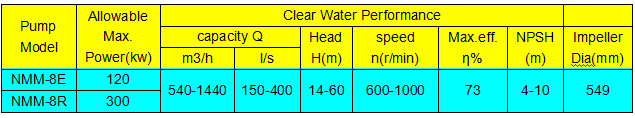

NMM Series Slurry Pump Performance Chart
![](/pic/other/2014-08-25-08-09-353.jpg)
Note: 1.Quantity range recommended:50%Q’≤Q≤100%Q’(Q’Appropriate to capacity at highest efficiency point).
2.NPSH:appropriate to point Q recommended at highest speed.
Application
NMM Series slurry pumps are suitable for delivering middle abrasive, middle-density slurries for metallurgical, mining, coal and build material departments. The shaft seal is adopted both gland seal and centrifugal seal. |
![](/pic/other/2014-07-21-22-50-217.jpg)
NMM-8E Slurry Pump is used in coal washery |
