                             NVF Foam(Froth) Pump

NVF Series Foam (Froth) Pumps are the latest generation of froth pump based on the advanced technology at home and abroad. It could eliminate the froth in the slurry in running and work normally even if the feeding slurry is not enough.NVF Foam (Froth) pump is the ideal products to deliver the frothy slurry, especially in the flotation technique process.

1.General description
NVF Series froth pumps are the latest generation of froth pump based on the advanced technology at home and abroad. It could eliminate the froth in the slurry in running and work normally even if the feeding slurry is not enough.NVF pump is the ideal products to deliver the frothy slurry, especially in the flotation technique process.
2.Introduction
NVF Foam (Froth)series pumps use bearing assembly of VA, VB and PNL.On the bearing house, there is the motor base or motor support, which helps adopt belt drive and direct drive. It is very convenient to change the pulleys to adjust the speed and meet the changes of the work conditions.
The box is made of steel, stainless steel or rubber lined steel. It has the feeding suction and overflow box in the tangent line. The overflow box could deliver the surplus slurry back to the pool. The feeding suction in the tangent line could transport the slurry fast and eliminate part of the froth.
NVF Foam (Froth)series pumps are of double-casing. The materials of the wet parts could be metal alloy, rubber or other non-metal material according to the slurry properties.
3.Model Explanation:

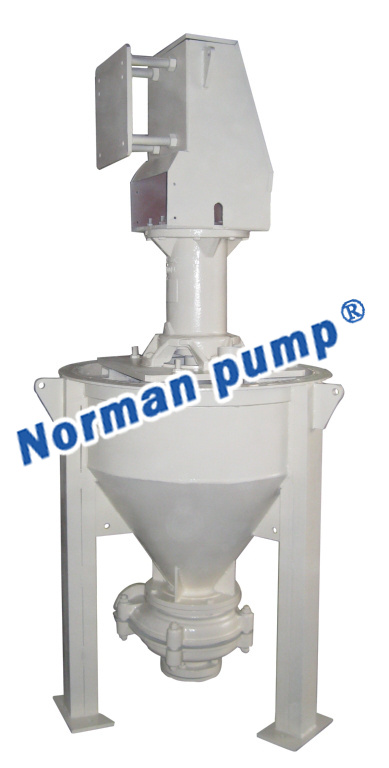

NVF-2Q foam (froth) pump
N: Our company(Norman)
V: Vertical slurry pump
F: Foam pump/Froth Pump
2: Discharge size (inch)
Q: Frame type with maximum power

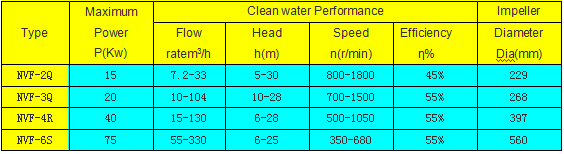

                                       NVF Foam(Froth) Slurry Pump Performance Chart

Note: 1.Quantity range recommended:50%Q’≤Q≤100%Q’(Q’Appropriate to capacity at highest efficiency point).

2.NPSH:appropriate to point Q recommended at highest speed.

Application
NVF Foam(Froth) pump is used widely in the metallurgy, minerals, coal washery, chemical and other industrial departments, suitable for handing the abrasive and corrosive slurry with the froth.


NVF Foam(Froth) Series pumps are widely used in many kinds of flotation technology. Norman has supplied many froth pumps for many concentration plants.

       NVF-4R is ready to be shipped to Middle East.
