NLM(R) Slurry Pump

The NLM(R) series Centrifugal slurry pumps are cantilevered slurry pumps, horizontal, centrifugal slurry pumps. NLM(R) series pump is light duty slurry pump, which features by higher rotate speed, smaller size and lighter weight compared to heavy duty slurry pump, They are suitable for delivering less abrasive, low dense slurry. The NLM(R) series centrifugal slurry pumps have a high rate of revolution and small volume saving floor area. NLM(R) series slurry pumps have become the first selection in metallurgical, mining, coal, power, building material and other industrial departments.

1. General Description
Transport the slurry with low concentration, PH 5-12, metal lined (also corrosive slurry with rubber lined).
2. Introduction
Type NLM(R) slurry pumps are cantilevered, horizontal, centrifugal, slurry pumps.NLM series pump is light duty slurry pump, which features by higher rotate speed, smaller size and lighter weight compared to heavy duty slurry pump, NLM(R) slurry pumps are suitable for delivering less abrasive, low dense slurry.
The frame plates have changeable, wear-resistant, metal liners or rubber liners and the impellers are made of wear-resistant metal or rubber (Rubber for frame plates, impellers of pumps with discharge Dia. (mm) above 550mm.)The discharge position by request may be rotated 8 different angles at internal of 45 degrees for installation and application.The shaft seals could adopt the Packing seal, Expeller Seal or Mechanical seal.
3. Model Explanation
NLM(R)-100D
N: Our company(Norman)
L: Low concentration
M: Metal lined
R: Rubber lined
100: Discharge size (mm)
D: Frame type with maximum power

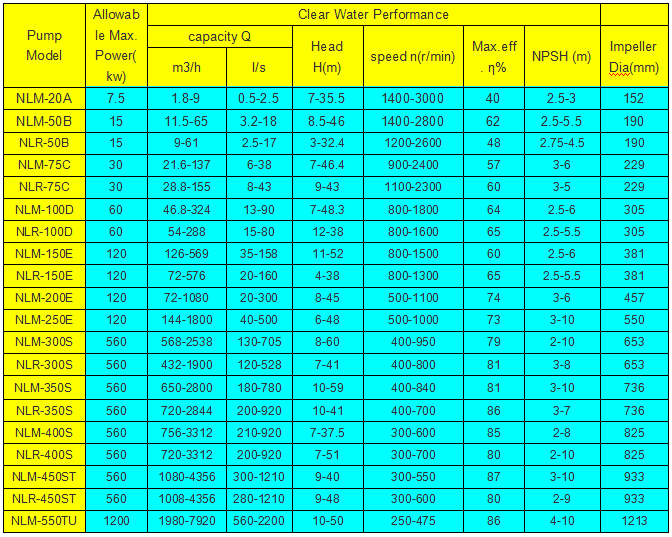

NLM(R) Series Slurry Pump Performance Chart

Note: 1.Quantity range recommended:50%Q’≤Q≤100%Q’(Q’Appropriate to capacity at highest efficiency point).
2.NPSH:appropriate to point Q recommended at highest speed.

Application
NLM Series Slurry Pump is suitable for delivering low abrasive, low-density slurries for metallurgical, mining, coal,chemical industrial,power plant,river dredging and construction material industry departments.

NLM-75C is used in construction material industry
